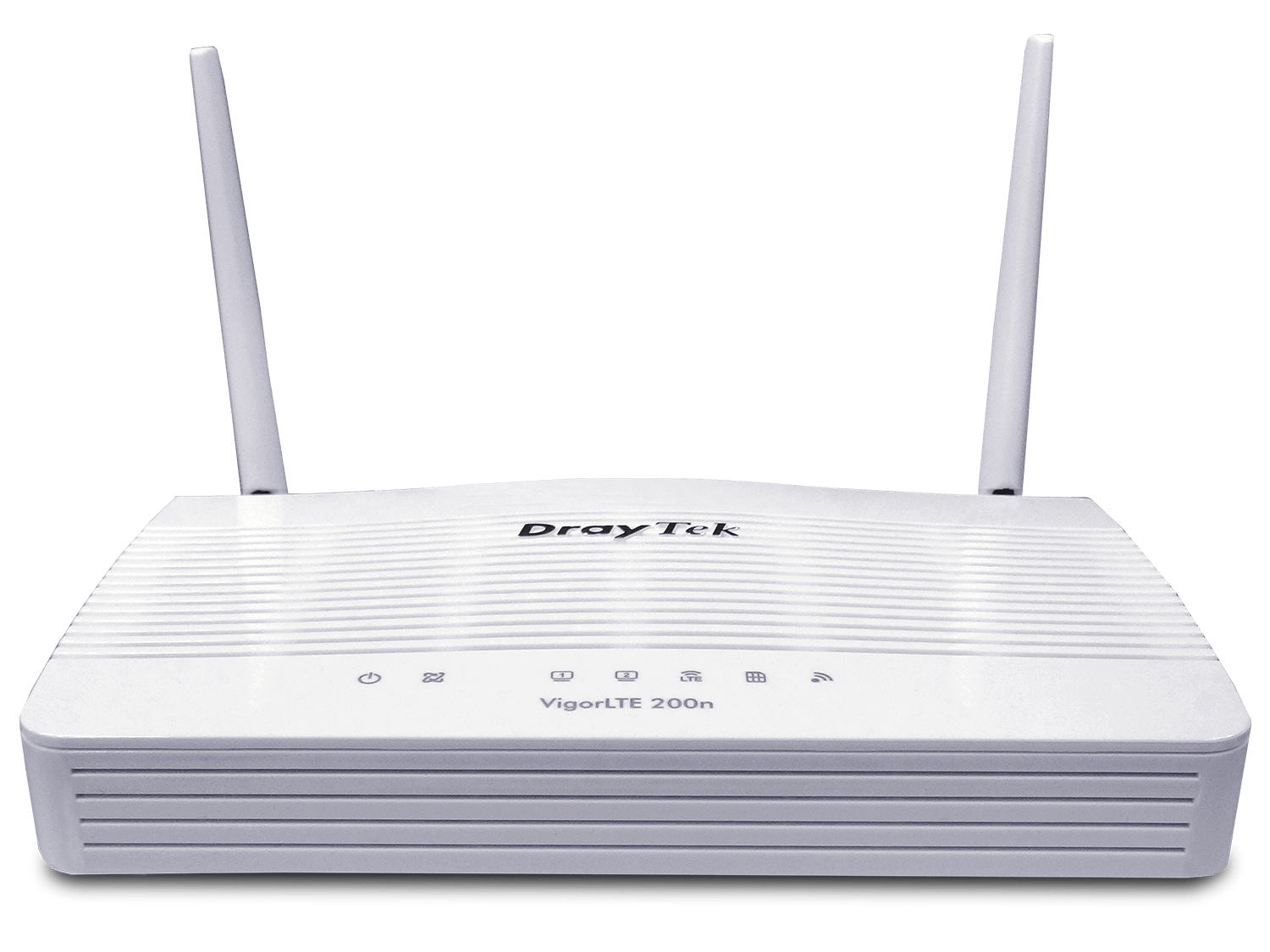

VigorLTE 200n

LTE Wi-Fi Router with VPN

Stay Connected Throughout the World

VigorLTE 200n is an LTE broadband Wi-Fi router for smart home or small business network of around 30 hosts. The primary WAN interface is the LTE mobile broadband, ideal for sites without fixed lines infrastructure or locations that needs temporary Internet access. It offers Dual-SIM slots for failover to increase coverage and reduce roaming costs. Alternatively, one of its 2x Gigabit Ethernet LAN ports can be switched to WAN interface and get internet access from a fixed-line broadband connection.

VigorLTE 200n has two Ethernet ports and built-in 802.11n Wi-Fi for LAN access. The router can handle two concurrent VPN tunnels to link to the main offices or provides remote management access for Network Admins. It also offers the flexibility for network management, including Port Forwarding, SPI Firewall, Content Filtering, Bandwidth Management, QoS, and more.

150 Mbps

Maximum LTE Download Speed

N300 Wi-Fi

Built-in 802.11n Wireless LAN

2x VPN

IPsec Throughput up to 50 Mbps

Dual-SIM

Insert 2x SIM cards for Failover

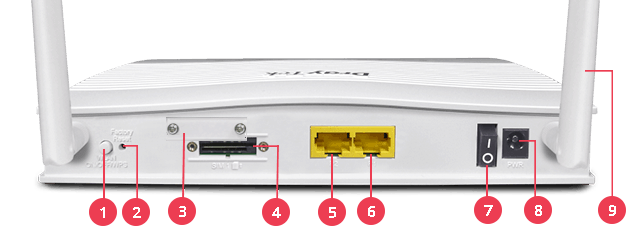

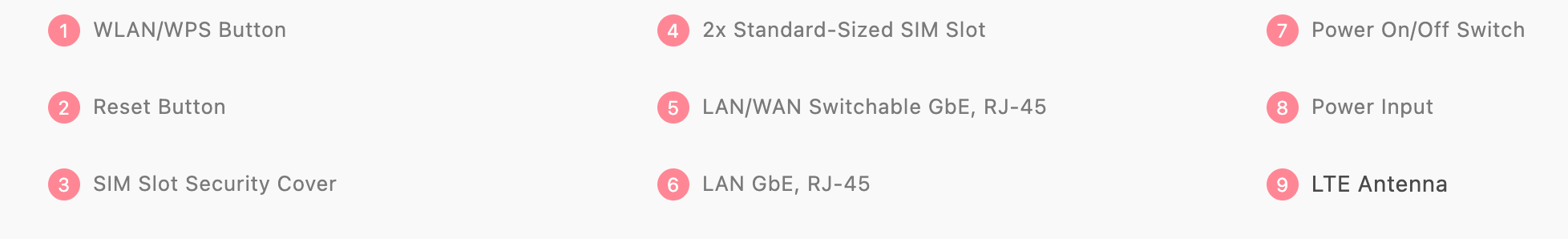

1 WLAN/WPS Button

3 SIM Slot Security Cover

5 LAN/WAN Switchable GbE, RJ-45

7 Power On/Off Switch

2 Reset Button

4 2x Standard-Sized SIM Slot

6 LAN GbE, RJ-45

8 Power Input

9 LTE Antenna

Embedded SIM Slot

Provide 4G/LTE Internet access to where fixed lines are (temporarily) not available without the need for a USB dongle.

Firewall & Content Filter

Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.

VPN (Virtual Private Network)

Build a secure and private tunnel from the LAN of VigorLTE 200n to the remote offices and teleworkers over the Internet.

DrayDDNS

The free DDNS service for you to access the router by a fixed hostname of your choice.

Bandwidth Management

Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.

Central AP Management

Use the VigorLTE 200n router as a wireless controller to maintain and monitor the VigorAPs.

Interface
LAN/WAN Switchable Port 1x 10/100/1000Base-TX Ethernet, RJ-45 (LAN P2)
Fixed LAN Port 1x 10/100/1000Base-TX Ethernet, RJ-45
SIM Slot 2x Standard-Sized
LTE Antenna 2x Detachable
2.4G WLAN 802.11n 2x2 MIMO 300Mbps
Wi-Fi Antenna 2x Internal, Gain: 2 dBi
Capacity
NAT Throughput 300 Mbps
IPsec VPN Performance 50 Mbps (AES 256 bits)
SSL VPN Performance 25 Mbps
Max. Number of NAT Sessions 30,000
Max. Concurrent VPN Tunnels 2
Max. Concurrent SSL VPN 2
LTE
LTE Category 4
Max. Data Rate 150 Mbps downlink, 50 Mbps uplink
FDD Band 1 (2100MHz), 3 (1800MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz)
WCDMA (3G) Band 1, 8
Internet Connection
IPv4 PPPoE, DHCP, Static IP
IPv6 PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
LTE WAN Bridge DHCP Client
Multi-VLAN/PVC
WAN Failover
Connection Detection ARP, Ping
Dynamic DNS
DrayDDNS
WAN Budget
LAN Management
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 8
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
Networking
Routing IPv4 Static Routing, IPv6 Static Routing, RIPv2
Multicast IGMP Proxy, IGMP Snooping & Fast Leave
VPN
LAN-to-LAN
Teleworker-to-LAN
Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IPsec XAuth
User Authentication Local, RADIUS, mOTP
IKE Authentication Pre-Shared Key, X.509
IPsec Authentication SHA-1, SHA-256, MD5
VPN Matcher
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
Firewall & Content Filtering
NAT Port Redirection, Open Ports, DMZ Host, UPnP
ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
VPN Pass-Through PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering Application, URL, Web Features, Web Category*, DNS Keyword (*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Port
Wireless LAN (n model)
Number of SSID 4 per radio band
Security WEP, WPA, WPA2, WPS
Authentication Pre-Shared Key, 802.1X
WDS Bridge, Repeater
Access Control Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
WMM
Management
Local Service HTTP, HTTPS, Telnet, SSH, TR-069, SMS Sending & Receiving
Config File Export & Import
Firmware Upgrade TFTP, HTTP, TR-069
Access Control Access List, Brute Force Protection
Notification Alert SMS, E-mail
SNMP v2, v2c, v3
Syslog
Central AP Management 2 VigorAP
Physical
Power Supply DC 12V @ 1A
Max. Power Consumption 12 watts
Dimension 207mm x 131mm x 42mm
Weight 380g
Operating Temperature 0 to 45°C
Storage Temperature -25 to 70°C
Operating Humidity (non-condensing) 10 to 90%
Certificate CE

All specifications are subject to change without notice.
