Vigor3912 Series

10G High-Performance Router

Quad-Core Powerful Enterprise Gateway

Vigor3912 Series is designed for bandwidth-demanding networks, featuring a 2GHz Quad-Core CPU for fast connection speed, even with multiple connected devices. The router has 8 WAN interface, including 2x 10G SFP+ for fiber connectivity, 2x 2.5G Ethernet, and 4x 1G Ethernet, providing ultra-fast NAT throughput. Port1 to port8 are configurable independently for WAN or LAN to offer flexibility and optimize the router performance.

Vigor3912 Series can serve as a VPN server to establish LAN-to-LAN or remote dial-in VPN connections. It includes SMB-friendly features like VPN 2FA authentication and VPN from LAN, ensuring a more secure and efficient VPN network.

Vigor3912S comes equipped with 256GB SSD storage inside, supporting Linux applications with Docker. Suricata and VigorConnect are supported. This feature allows users to effortlessly install and run powerful softwares directly on the Vigor3912S, eliminating the need for additional computer to installing servers.

Up to 8 WANs

including 10G SFP+ and 2.5G Ethernet

Quad-Core CPU

provides 15.6 Gbps NAT throughput*

500 VPN

provides 5.7 Gbps IPsec throughput*

500 Hosts

Reserve 2048 entries for Bind-IP-to-MAC

*bi-directional(TX+RX) performance

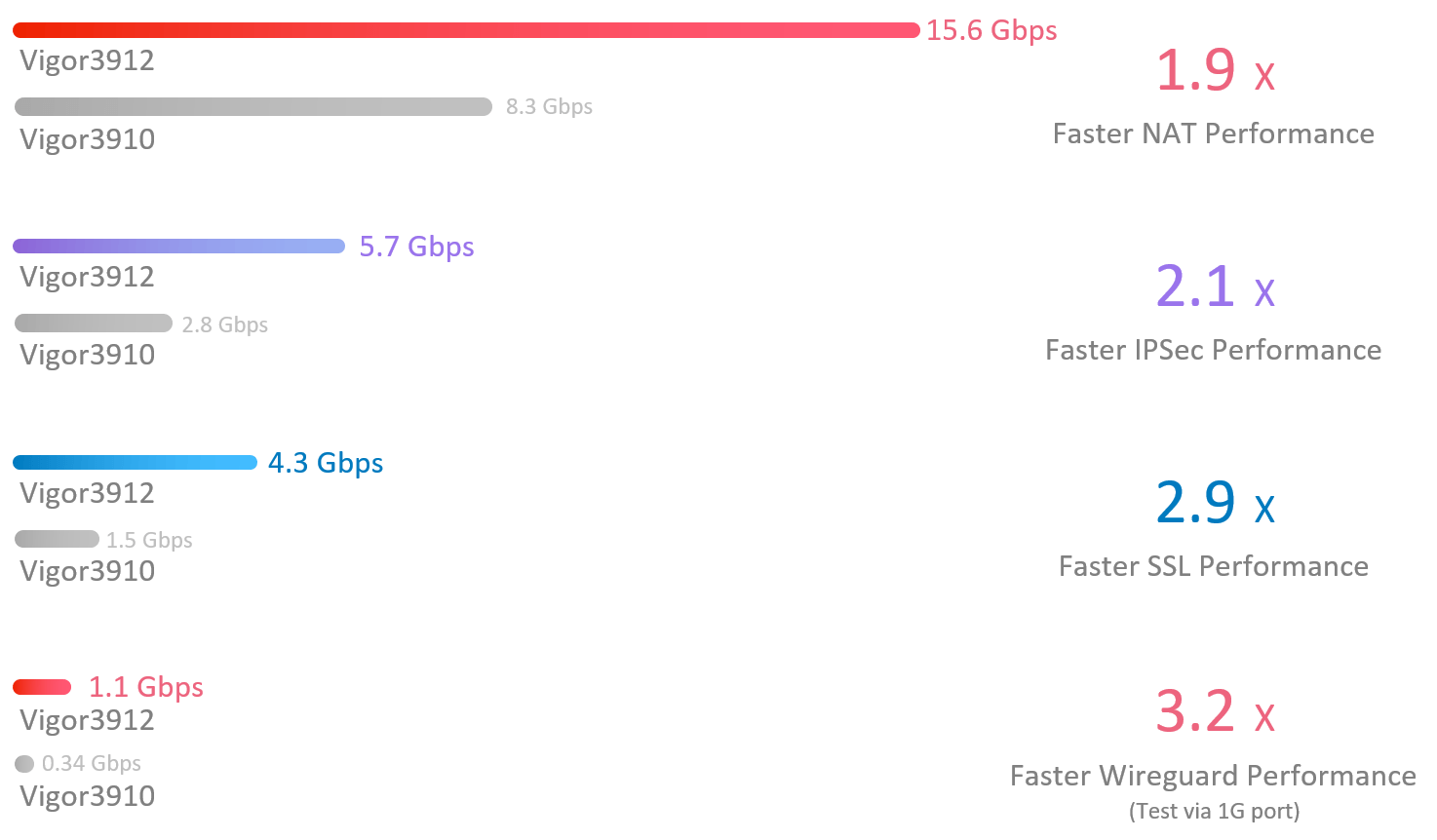

High Performance 10G Router*

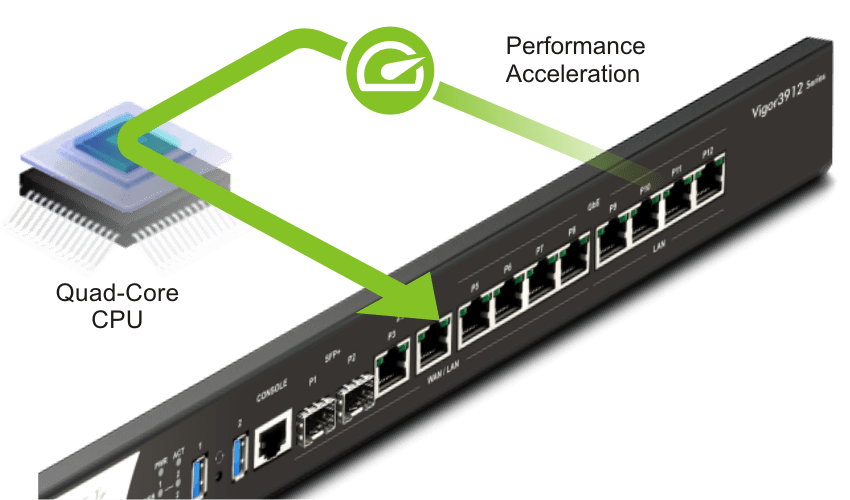

Quad-Core CPU

Provides 15.6 Gbps NAT throughput (bi-directional)
*bi-directional(TX+RX) performance

Key Features

Quad-Core Processor
Offer excellent performance for bandwidth-demanding enterprise networks.
Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality WLAN.
VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of Vigor3912 Series to the remote offices and teleworkers over the Internet.
SSL VPN
The VPN works through firewalls providing secure remote access to any network environment.
DrayDDNS
The free DDNS service for you to access the router by a fixed hostname of your choice.
VPN Matcher
Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN
Central AP Management
Use the Vigor2927 Series router as a wireless controller to maintain and monitor the VigorAPs.
Firewall & Content Filter
Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
PPPoE Server
Use Point-to-Point connection on LAN to keep track of individual user's traffic.
Bandwidth Management
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches.
Load Balancing
Set up VLAN easily from the router and get a centralized hierarchy view of the switches.
10G SFP+
Provides 2x 10G-capable fiber SFP ports for WAN or LAN connection.
VPN 2FA Auth for AD/LDAP
Enhance the security for remote VPN connections and eliminate the cost for an official authentication system.

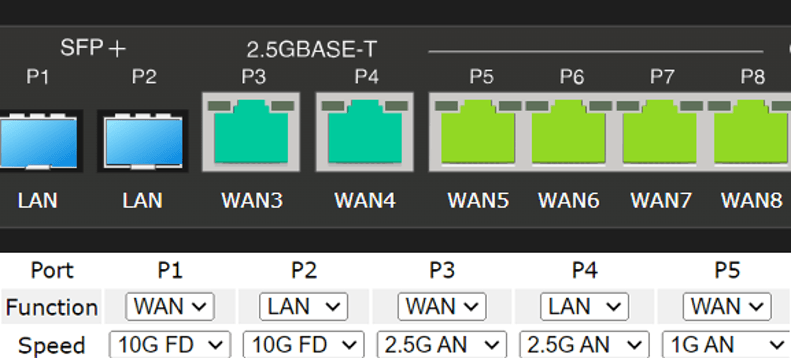

Flexible WAN/LAN Ports

12 Ports in total

8 Ports can be switched to LAN or WAN. So it can have up to:

8 WAN interfaces with 4 LAN Ports or

1 WAN interface with 11 LAN Ports

Advanced VPN Features

VPN from LAN (Zero Trust)

Never trust, always verify. VPN from LAN works Zero Trust out. It provides a better security level to your network, which protects vital servers from potential threats caused by other LAN devices. The servers can only be accessed by VPN, even if the devices are on the LAN network.

VPN User Isolation

Isolating remote dial-in accounts to protect VPN users from each others. They can only access company’s servers but not allowed to enter each other’s devices. This helps prevent unauthorized access to sensitive data and protect network from malware or other intrusions.

VPN 2FA on AD/LDAP Server

With new Two-Factor authentication, you can strength the security of VPN connections and eliminates the expense of SMS messages or license fees in a cost-effective way.

Packet Capture Tool for VPN tunnel

By either mirroring all packets to designated LAN port and now to VPN connection no matter LAN to LAN profile or remote Dial-in users, and even downloading .pcap file via WUI remotely, spotting an issue is easier than ever.

Server Load Balancing

Hosting multiple servers to share the traffic load for the same service is common. It can avoid excessive load on a single server by distributing the load, optimizing resource usage, and preventing a single server failure.With Server Load Balance, when massive connections enter the router, the router will distribute the inbound NAT sessions among the servers with the configured load balance weight.

Port Knocking

Configuring NAT Port Redirection rules is the typical way to allow the internal servers to be accessible from the Internet. However, once the port opens, it is exposed to the Internet and can be scanned by the malware.Port knocking is a technology that can add an extra layer of protection to the internal servers. Its basic idea is that only open ports are at risk of being attacked, so it allows all ports to be closed at the beginning. Do not open them, and then set a password based on the port combination. Only those who know the password can open the ports and connect.

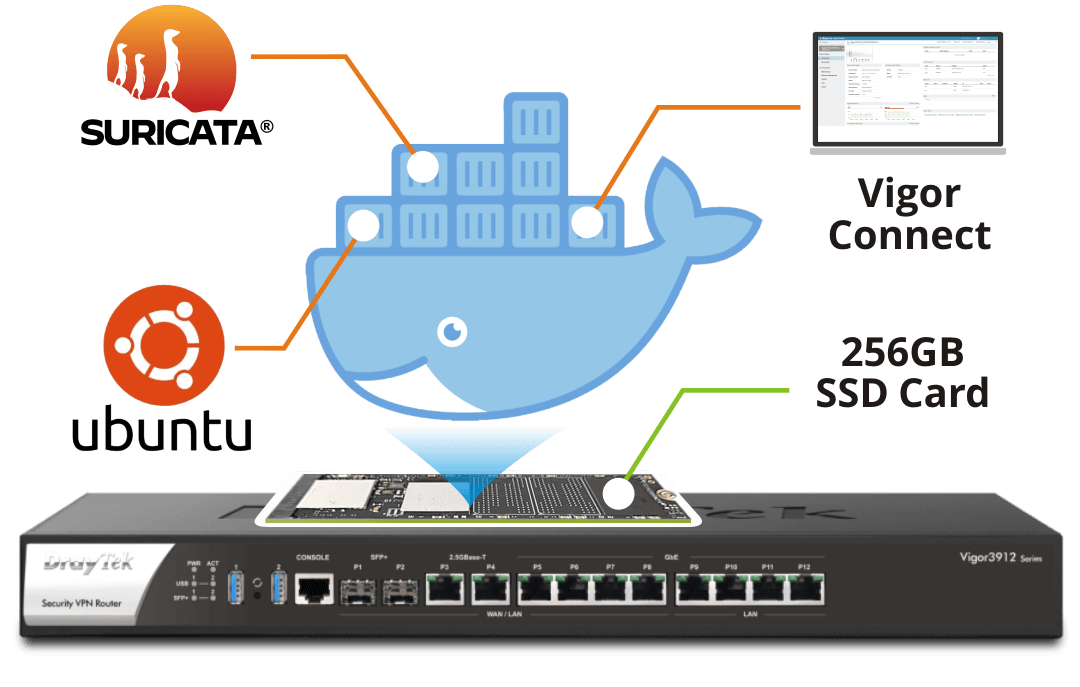

Linux Applications - Vigor3912S Only

  • VigorConnect
  • Suricata
  • Applications on Ubuntu

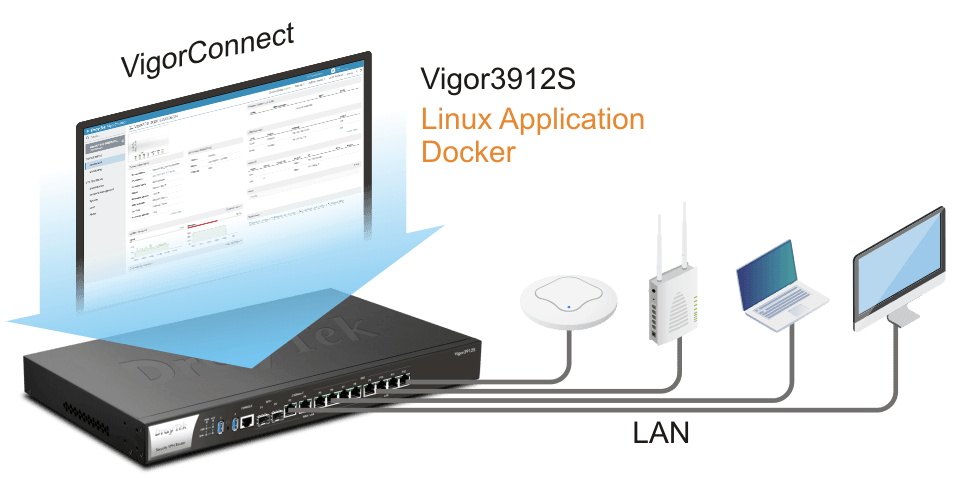

Linux Application - VigorConnect

*S Model Only

The Vigor3912S router supports Docker, enabling the installation and operation of the VigorConnect server directly on the device. This capability simplifies network management by allowing the VigorConnect server to monitor DrayTek devices without requiring an additional computer. The installation process is straightforward and can be completed through the router's web user interface (WUI) with just a few clicks. This integration provides a convenient and efficient solution for network administrators to oversee and manage their network infrastructure.

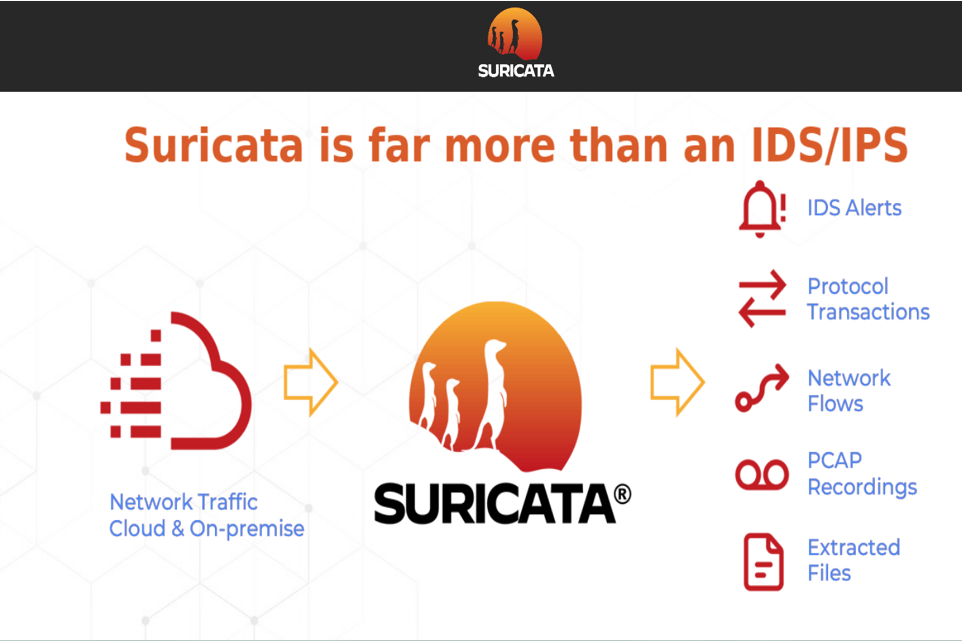

Linux Application - Suricata

*S Model Only

A famous open-source threat detection software, empowering it to detect and prevent a wide range of network threats effectively.
Suricata is an open-source threat detection system. It supports more than 60,000 rules, including 6,000+ CVE rules, and can detect and prevent a wide range of network threats, such as malware, network intrusions, denial-of-service attacks, and data breaches.Vigor3912S supports Linux Applications Suricata, allowing this powerful software to be installed and used to protect the network.
